Energy
Power begins with the specification.
Bring together electrical requirements, installation conditions and connection details for your energy equipment.

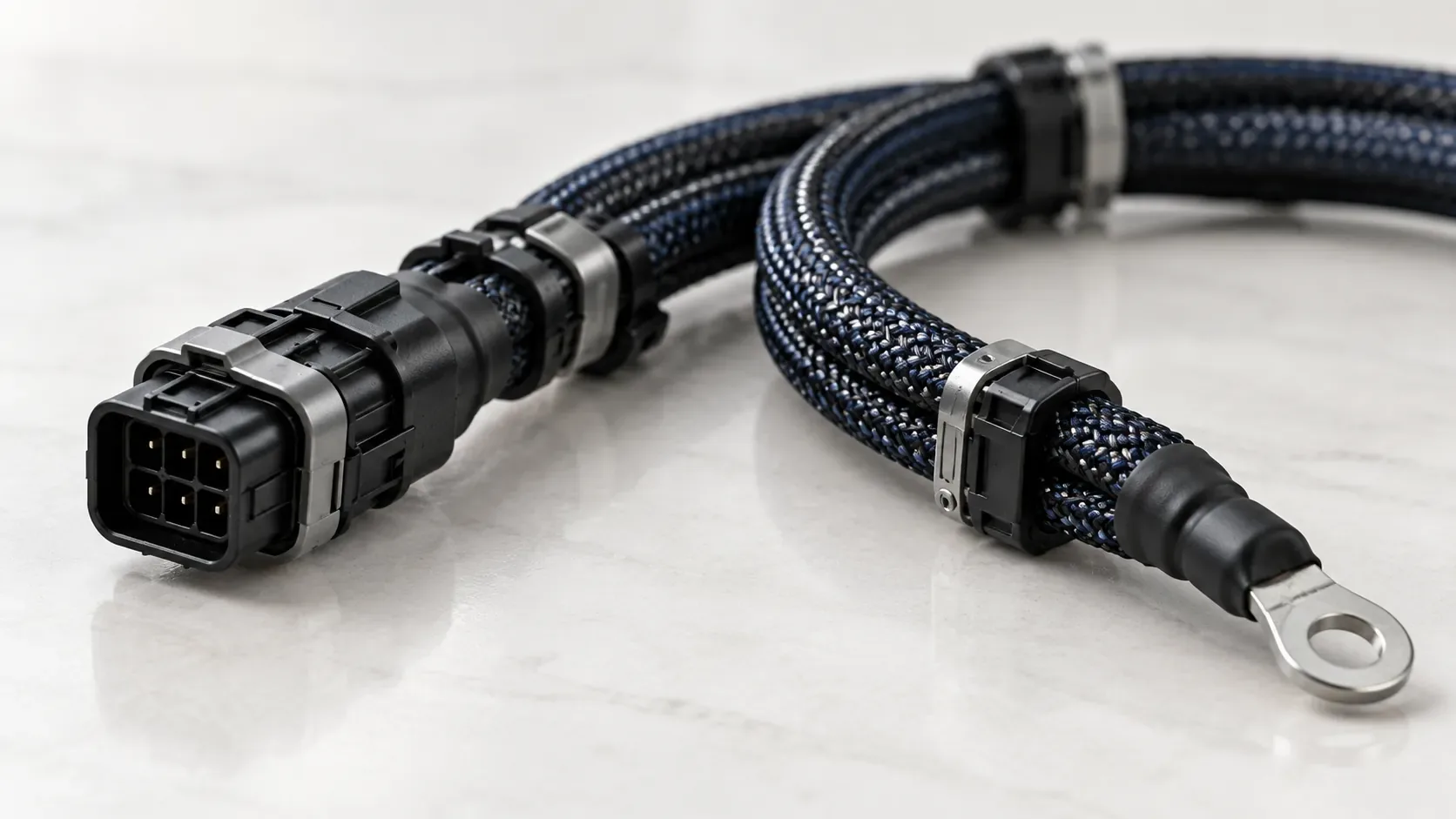

Illustrative application
Energy systems
Define the conditions around the connection.
Energy equipment often combines power and control wiring in the same enclosure. Ratings, insulation, grounding and the installation environment all need to be stated before materials and construction can be agreed.
Wire Harness Manufacturer builds custom harnesses and cable assemblies to the ratings and requirements you specify. We do not assume ratings from a photograph or a sample, so include them in the brief.
Electrical requirements
State voltage, current and insulation requirements.
Installation environment
Describe indoor or outdoor exposure, temperature and moisture.
Equipment interfaces
Identify terminals, connectors, routing and service access.
What to include
Keep the requirements connected.
Power and control ends, grounding and shielding need to be specified together so the assembly works as one part of your equipment.
Voltage and current requirements
Power, control and signal ratings for each circuit.
Conductor and insulation specification
Conductor type, insulation and construction.
Grounding or shielding requirements
Grounding approach and shielding needs.
Exposure and enclosure conditions
Temperature range, moisture and location.
Required electrical checks
The tests and inspection records you need.
Final materials, construction and checks depend on the agreed application requirements.
FAQ
Before we build.
Common questions about energy systems wire harness projects.
Which electrical details should I send?
Include the specified ratings, connector references, conductor requirements and relevant drawings.
What are your lead times?
Samples take 3–4 weeks. Mass production takes 4–5 weeks. Both are confirmed against your agreed specification when we quote.
Can we sign an NDA and request inspection reports?
Yes. Contact us to arrange an NDA before you share confidential drawings. Production inspection reports are available on request, so include your reporting requirements in the brief.
Get started
Bring the requirements into focus.
Share your drawing, BOM and the details that matter to your application. Or explore other industries.
